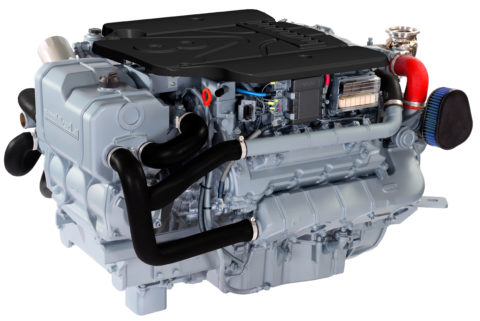

Nanni Marine Diesel Engine T8V.370

370 hp

Technical Specifications

  • Engine Base: Toyota
  • Rated Power (kW/HP): 272 / 370
  • Rated RPM: 3800
  • Displacement (cm³/in³): 4500 / 272
  • Number of Cylinders: 8 V design 90° 4 valves per cylinder
  • Bore and Stroke (mm/in): 86 x 96 / 3.39 x 3.78
  • Compression Ratio: 15.8:1
  • Intake: Twin Turbocharged

Engine Specifications

  • Dry Weight with Transmission (kg/lb): 350 / 771
  • Maximum Install Angle: 7° (dynamic)
  • Exhaust Hose Diameter (mm/in):
  • Fuel Hose Diameter (mm/in):
  • Sea Water Hose Diameter (mm/in):
  • Transmission: Hydraulic Shaft
  • Cooling: Closed with Heat Exchanger
  • Certifications: EPA marine Tier 3, RCD Stage 2 2013/52/EU

Standard Equipment

  • Fresh Water Cooled Exhaust Manifold
  • Exhaust Elbow
  • 4m Electrical Extension Harness
  • Fuel Filter
  • Oil Filter
  • Mecanical Gearbox
  • Sea Water Pump

Optional Equipment

  • Marine Transmission Adaptor Kits
  • Complete Propulsion Kit
  • Thottle and Shift Controls
  • Flybridge Panel and Extension Harness
  • Trolling Valve
  • Water Boiler System
  • Complete Fuel System
  • Complete Exhaust System
